The Leibniz Institute of Surface Engineering (IOM) gained matchless expertise on the fabrication and modification of ultra-precise and functional surfaces. In the recent years, the method of broad beam ion etching has become indispensable in the manufacturing of functional and high-precision surfaces for optical applications. Ion beams used for this purpose consist of both inert and reactive species and are of Kaufman-type or use RF- or ECR- excitation. Due to the continuing increase of the processed sample size, the importance of long process times and, therefore, long maintenance intervals is rising. Due to the absence of hot and eroding filaments and a high plasma density, RF-excited ion beam sources are a promising variant concerning, low ion beam contamination, low maintenance, high ion beam currents and, consequently, shorter process times.
In order to maintain high quality etching results with a surface roughness in the sub-nm range, the processes occurring inside the ion beam source, but also along the way between the plasma and the etching sample must be understood. Therefore, it is essential to know the ion energy distribution functions (IEDFs) and, in case of the use of reactive gases (i.e. CHF₃, CF₄, SF₆, O₂) and mixtures thereof, the proportion of the different fragments of the reactive gas, i.e. the CF_n, CHF_n and SF_n species, in the ion beam.

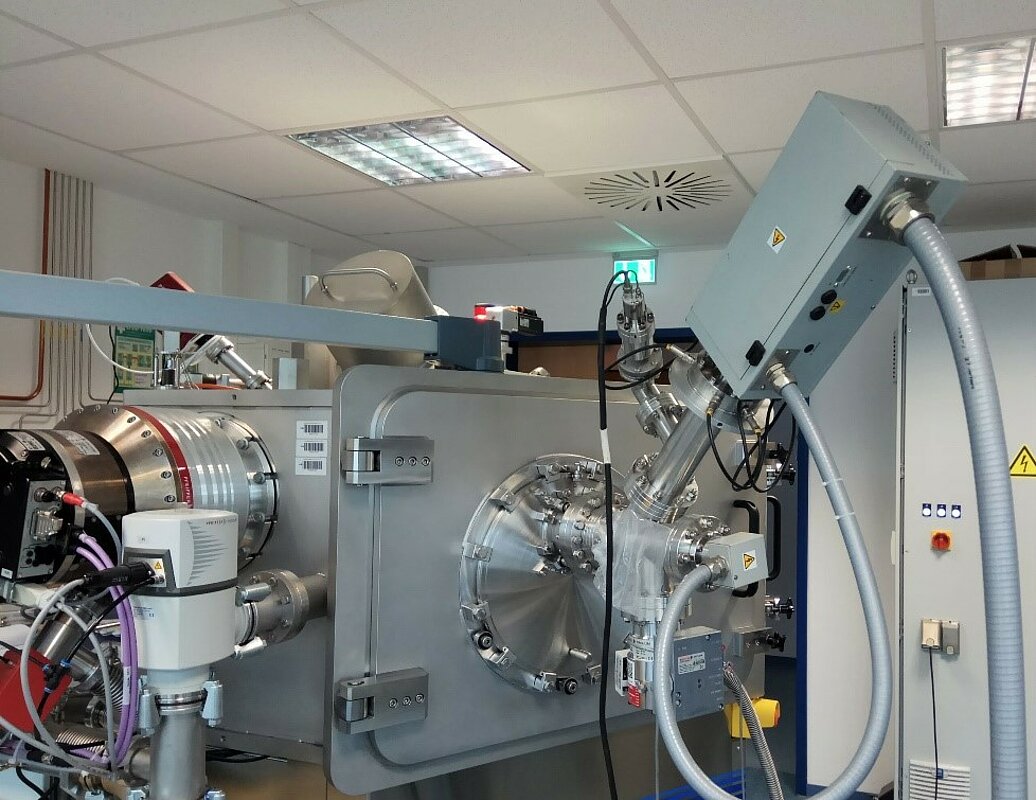

"To characterize the ion beam concerning the mentioned parameters, we are using a HIDEN EQP300 energy-selective mass spectrometer (ESMS)", explains Erik Rohkamm, a research scientist and PhD student in the Ion Beam assisted Patterning and Smoothing group. "For a first general understanding of the plasma processes in the ion beam source, we focused on the process gases Ar, He and Ne. The use of inert gases has the benefit of reducing chemical plasma processes and, therefore, reveal the physical characteristics of the ion production and extraction processes. For ion beam generation, we use a commercially available Scia RF-120m, that uses an inductively coupled plasma".
Together with Faraday measurements, it was shown that a high proportion of the extracted ions are affected by charge exchange processes with the residual gas of the vacuum chamber (≈30%-50%). These charge exchange processes produce slow ions and fast, high-energetic neutral atoms, which contribute to physical sputtering processes of the sample, but cannot be recorded by Faraday- or ESMS-measurements.
The IEDFs reveal, that the high-energetic parts have a bimodal structure (see Figure 2). This may be related to HF-modulation effects of the plasma sheath potential due to a capacitive coupling of the plasma to the RF-coil.
The measurement of mass spectra at the main beam energy showed, that beside ions of the injected inert process gases, also eroded particles of the plasma discharge vessel, made of SiO₂, and the extraction system, made of graphite, are present in the ion beam. This process may be amplified using reactive gases and, thus, have an unneglectable influence on the etching process. Future works will continue the measurement of the IEDFs, especially for using reactive gases.

Further information can be found in the publication:
Characterization of an RF excited broad beam ion source operating with inert gases
Erik Rohkamm, Daniel Spemann, Frank Scholze, Frank Frost
Journal of Applied Physics 129 (2021), 223305
https://doi.org/10.1063/5.0052758
